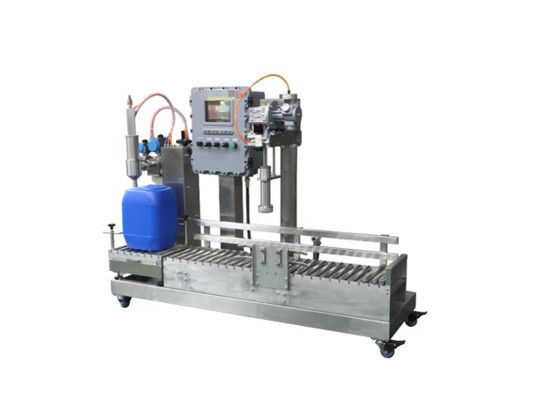

FF 30 Explosion Proof Filling Machine Cap Screwing Type

FF 30 Explosion-Proof Filling Machine – Cap Screwing Type

Applicable Materials:

Filling of materials with high cleanliness or corrosiveness in pharmaceutical, food and chemical industries.

Operation Process

Power on —Put barrel onto weight platform manually, fast positioning and mouth aligning — System detects barrel position automatically — Auto tare deduction — Filling nozzle and ball valve set open and start filling automatically ┅ Large/ small two shifts filling and reach the target weight and the nozzle closes automatically—Manual move barrel to cap clamping area — Press glancing button ┅ Pneumatic glancing ┅ Manually stacking.

Product Details:

Main features:

Machine body material: whole sus304 body, food-grade sus316L filling nozzle, and flow pipeline.

Adjustable device: filling nozzle height and position limit devices, pneumatic capping device, torsion and height, safe and reliable, improve the efficiency extremely and save labors.

Optional Configuration:

Dual nozzles, dual meters/ Filling nitrogen/ Return valve/ Filter/ Gas-collecting cover/ Other customization.

Main Parameter:

Power: AC110V~380V 50/60HZ 0.1kw
Speed:90-120 barrels/Hr
Air:0.5~0.7 Mpa
Accuracy:≤0.05% F.S.
Fill Range:10~30kg
Fill Head Material: SUS304/316/PTFE (Optional)
Division:20g
Ex Grade: ExdllBT6
